Model No.: INT-45-897

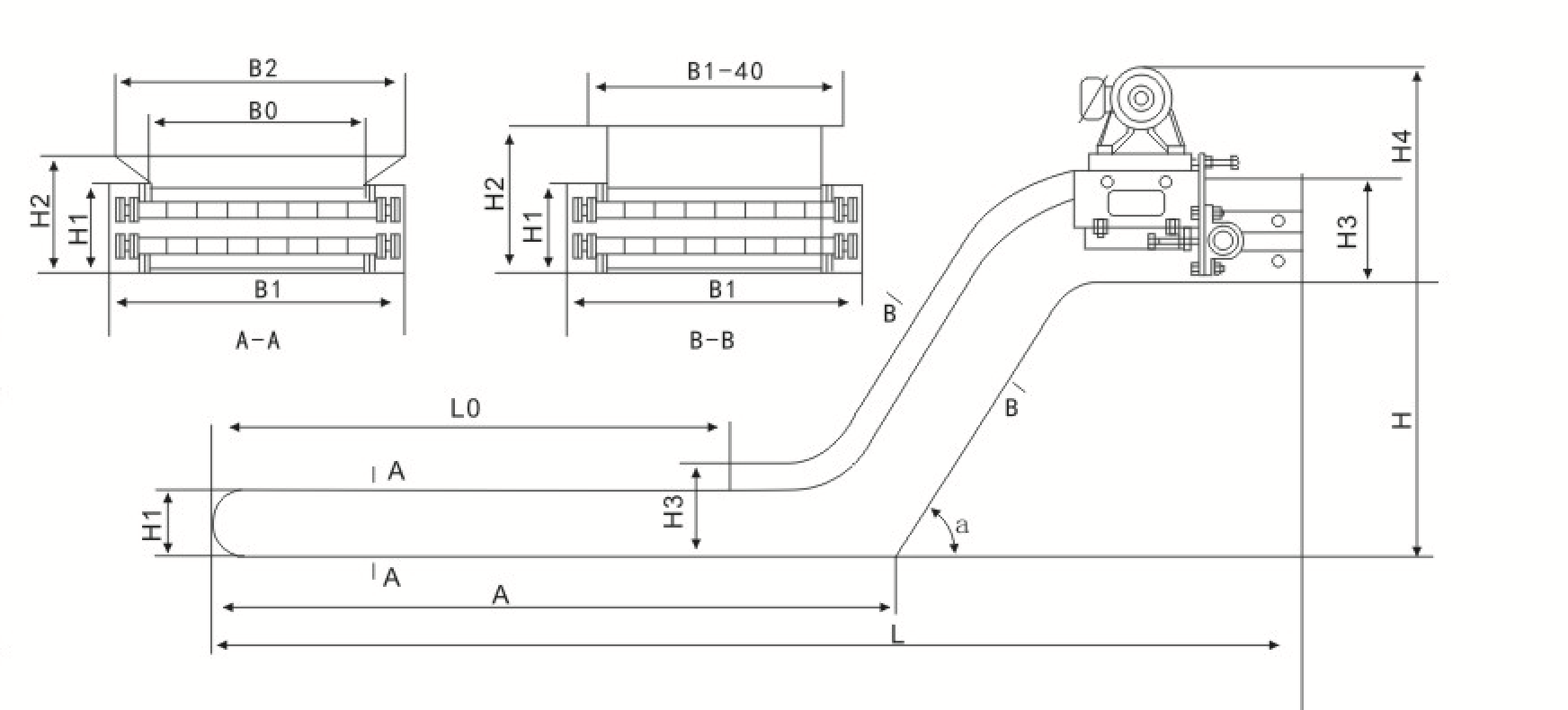

Hinged belt conveyors and coolant filtration systems - Automate chip removal and increase your productivity with solutions that safely remove the waste from your processes.Our systems are built based on your requirements and can be custom engineered to manage any chip type and material, scrap, parts, coolant, and coolant filtration. The chip conveyor can be many types, scraped type/hinged belt type/Screw type are both available here, you can take the blank drawing as reference,and then send us your own drawing.
LB series chain plate chip removal machine is composed of the following parts, reducer, drive chain, shell, transmission chain and hinged plate, etc. The reducer outputs power, which is transmitted to the transmission chain through the drive chain and the related components on the shell. The hinged plate combined with the transmission chain conveys the chips generated by the main engine to the designated station due to rotation.
The chip transportation speed of LB series chain plate chip removal machine has wide selection range, high working efficiency, diversified effective chip removal width, and can provide sufficient selection range. The chip removal amount of the machine can be adjusted by changing the transportation speed and chip removal width. And not limited by the type of chips, steel parts, cast iron, copper, aluminum and non-metallic and other chips can be applied.
LB uses a new type of FM-106G, FM- 20G powder metallurgy metal friction material on torque limiting mechanism, which has high heat resistance and good friction properties. In the range of overload load and sliding speed set by this machine, the friction coefficient is kept at 0.3 ≤ 0.40, and the change of friction coefficient is not more than 20%. Overloaded 800 times, The line wear is less than 0.04mm, And the device can operate normally under the condition of oil, and the remote monitoring of the device can be realized by adding the electric modern device. Our factory has replaced the previous mechanical contact Alarm device with the contactless proximity alarm system with high sensitivity. Short overload time reset is convenient to minimize accidental damage to the machine.
We used a new type of FM- 106G, FM- 20G powder metallurgy metal friction material on torque limiting mechanism,which has high heat resistance and good friction properties. In the range of overload load and sliding speed set by thismachine, the friction coefficient is kept at0.3 < 0.40, and the change of friction coefficient is not more than 20%.Overloaded 800 times, The line wear is less than 0.04mm, And the device can operate normally under the condition of oil,and the remote monitoring of the device can be realized by adding the electric modern device. Our factory has replacedthe previous mechanical contact alarm device with the contactless proximity alarm system with high sensitivity. Shortoverload time reset is convenient to minimize accidental damage to the machine.
The size of each part of each basic type can be flexibly designed according to the requirements of the host computer in orderto achieve the best configuration effect.
1.Q: How is the delivery?
A:For standard configuration, it's usually 30 days after down payment.
2.Q:How is the after-sales service?
A: Our products has one year warranty, and a strong team of engineers to support after-sales service.
3.Q:Are you a trading company or manufacture?
A:In time is a professional manufacturer, and your order will be controlled from very beginning to the last.Solution suppiler:
Welcome to inquire and visit our company!We are looking forward to serving you!
Ningbo junfa CNC Equipment Co. Ltd.
Ningbo junfa CNC Equipment Co. Ltd., founded in 2007, is located in NingBo City ,with a total investment of 18 million yuan, covering 100 acres, is a professional production of high-end CNC equipment, high-tech enterprises.
Our business concept: "cience leading, Quality First, Customer Supremeparamountcy, Service Superior and Spirit of Pursuing Superiority, Creating Excellence" Advocating environment protection, optimal use of limited resources, strive to develop recycling economy and green industry to benefit people of the world.
Appreciate the long support and cooperation from our regular and new customers, we will always supply you with quality products and render our first class service! Welcome people from all over the world for business cooperation!
